| Sl No |
Line Items |
Description |
Comments |
| 01 |
Project Size |

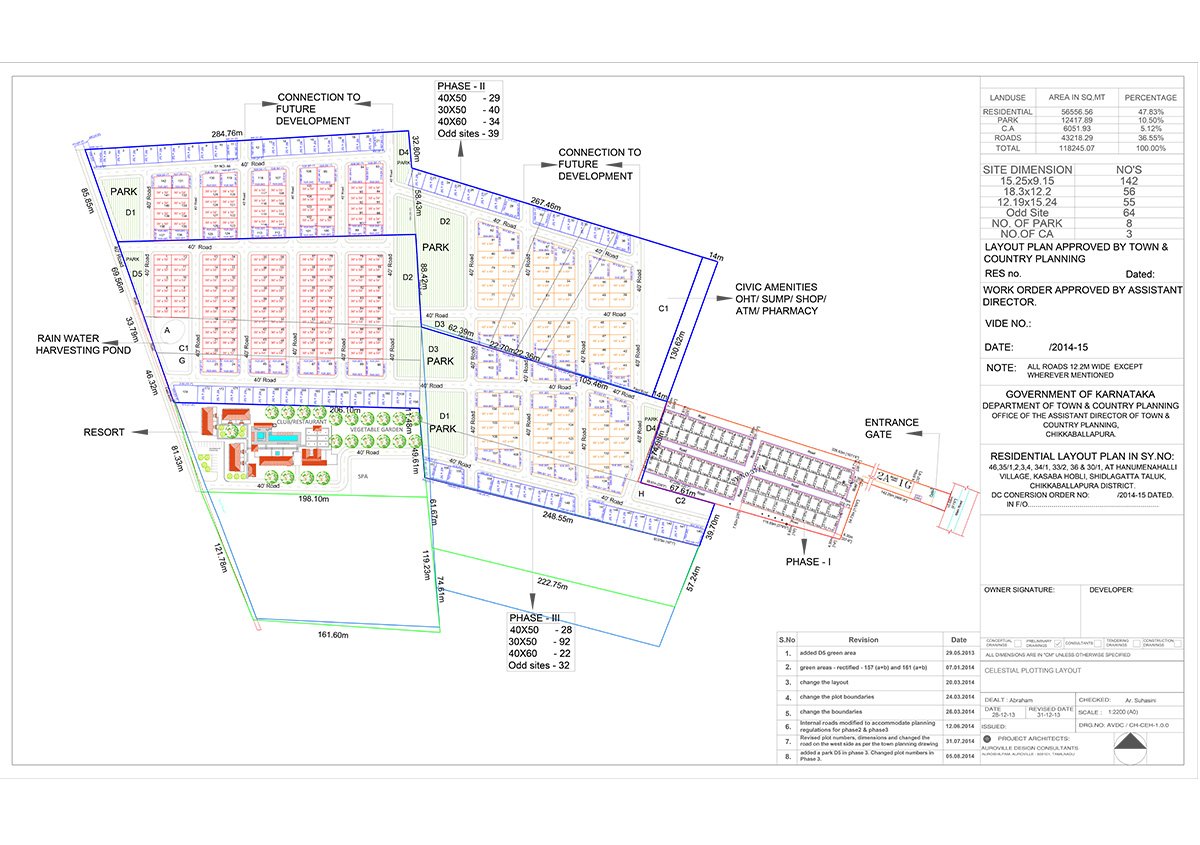

Project Size: ~ 34 Acres |
Exclusive of Celestial Eco Habitat Resort |
| 02 |
Approval |
Approval : DC Conversion |
|
| 03 |
Approval |
Approval : Bangalore Town Planning Approval |
|
| 04 |

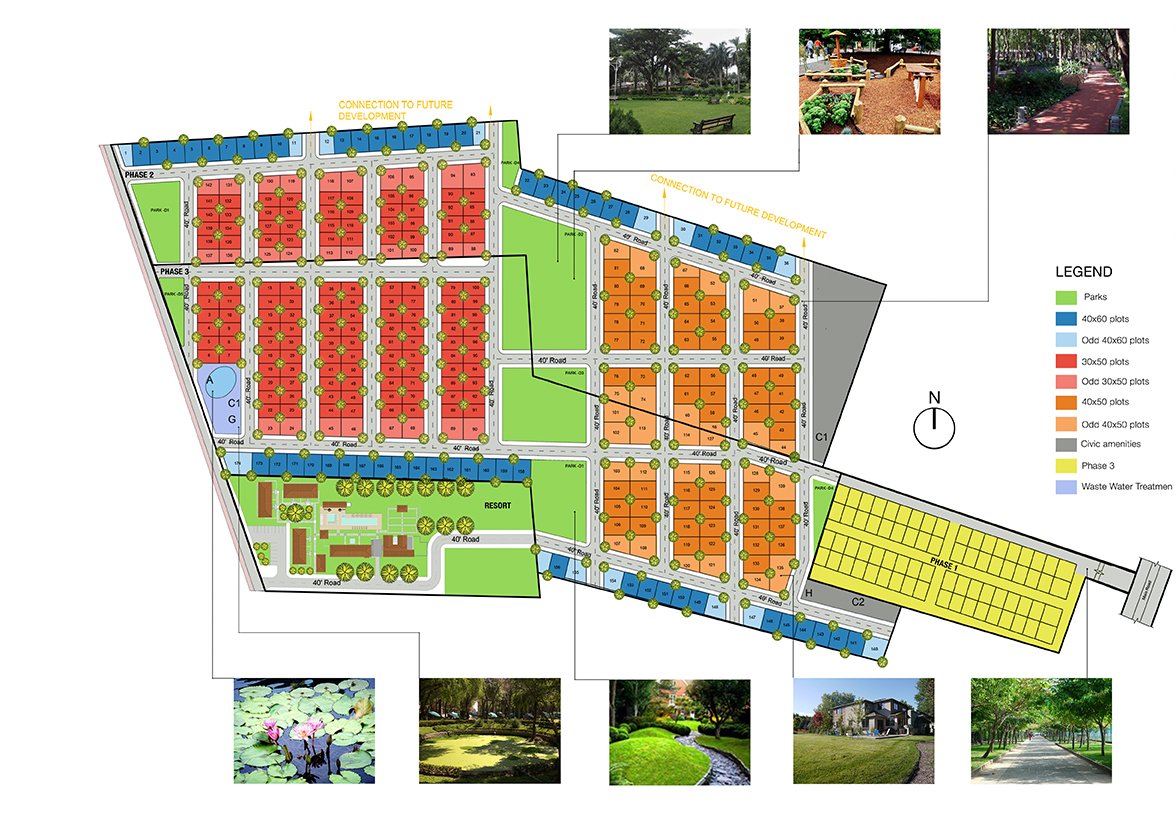

Land Size allocation for Residential Area |
47.83% Allocated for Residential purpose. |
Govt Regulation and Guidance is 55%, We @ Charmion have allocated less for Residential and Increased more of "Greenery" and Wider "Right of Way" |
| 05 |
Land Size allocation for Park and Recreation Area |
Park Area - 1.4 Lakhs Sq Foot |
Large Garden and Park Area |
| 06 |
Land Size allocation for Civic Amenities Area |
~ 65K Sq Foot |
|
| 07 |
Road Size |
40 Ft "Right of Way" |
Govt Regulation are 30 Ft "Right of Way for cross roads and 40 Ft for Main roads" |
| 08 |
Electricity Connection |
Under Ground Electricity Circuit
- Power Cables and Other Electrical components to be laid will be as per KEB regulations
|
Electricity is provide by Karnataka Electricity Board. Charmion will commission Electricity connection as per Govt Regulations and Norms. |
| 09 |
Plot Marking |
Four Corner of the Plot will be marked with Granite Stone |
|
| 10 |

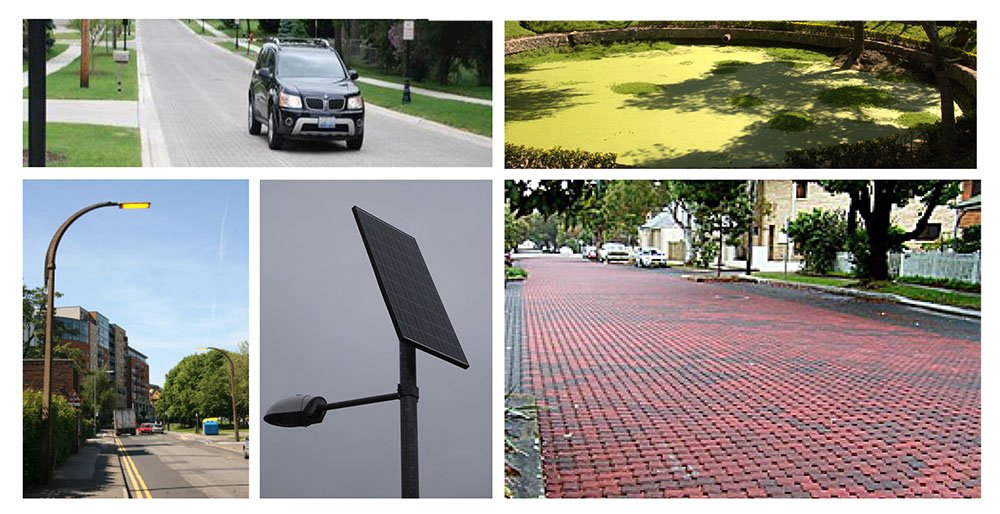

Roads |
Interlock Paver blocks with 40M Grade |
This is as per Industry Norms |
| 11 |
Street Lights and Garden Lights |
All Lights will be LEB based bulbs powered by Solar PV’s / EB Power Source |
|
| 12 |
Security |
- 7 Ft Compound Wall
- Security @ Entrance points of the Project and Resort
|
- We are exploring an option of CCTV
- Indian Breed Guard Dogs
|
| 13 |
Water Source and Supply |
- Borewell
- Sump with Hydro Pneumatic Pumps
|
- One Borewell In place of 600 Ft Depth.
- Provisioned to Dig 2 Additional Borewells
- This is the latest technology used in the system
|
| 14 |

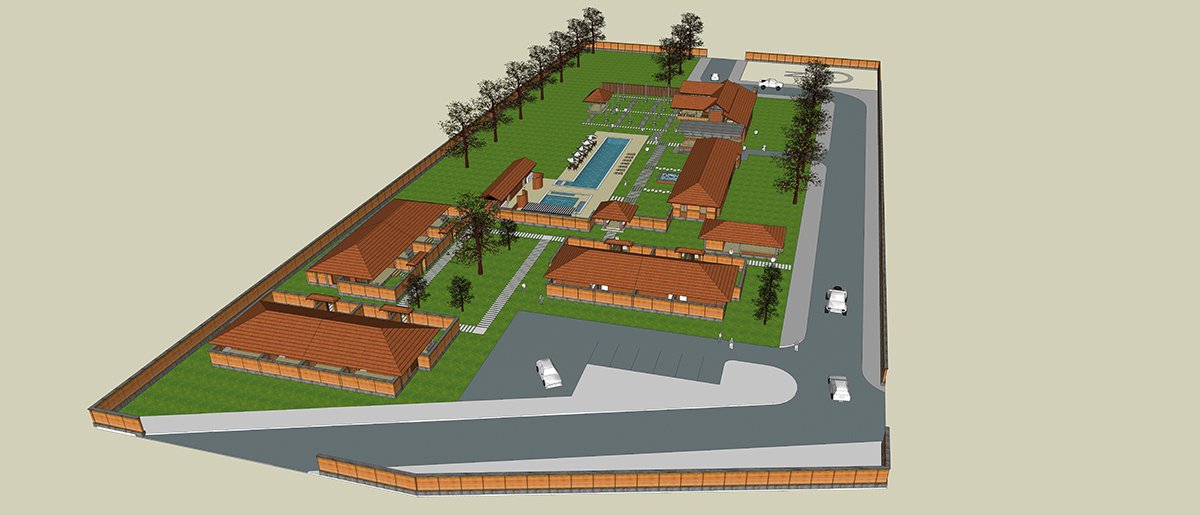

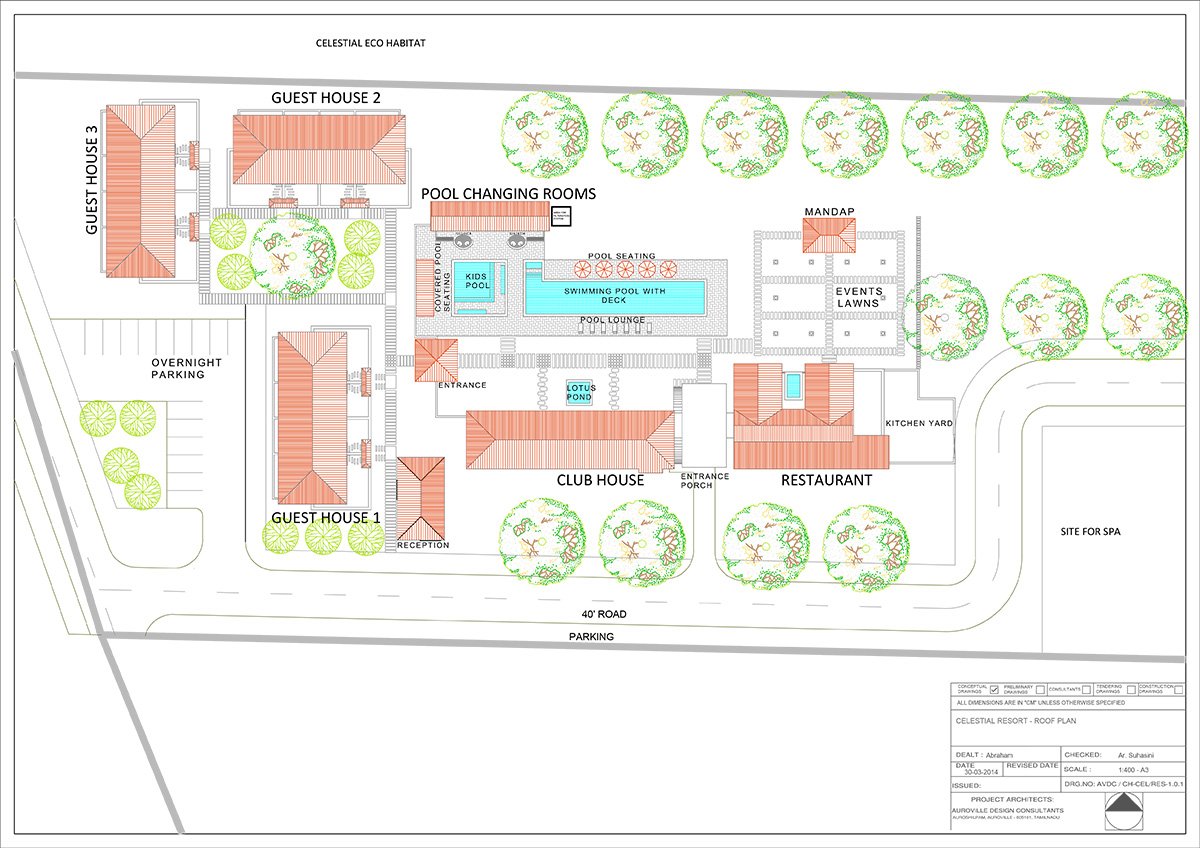

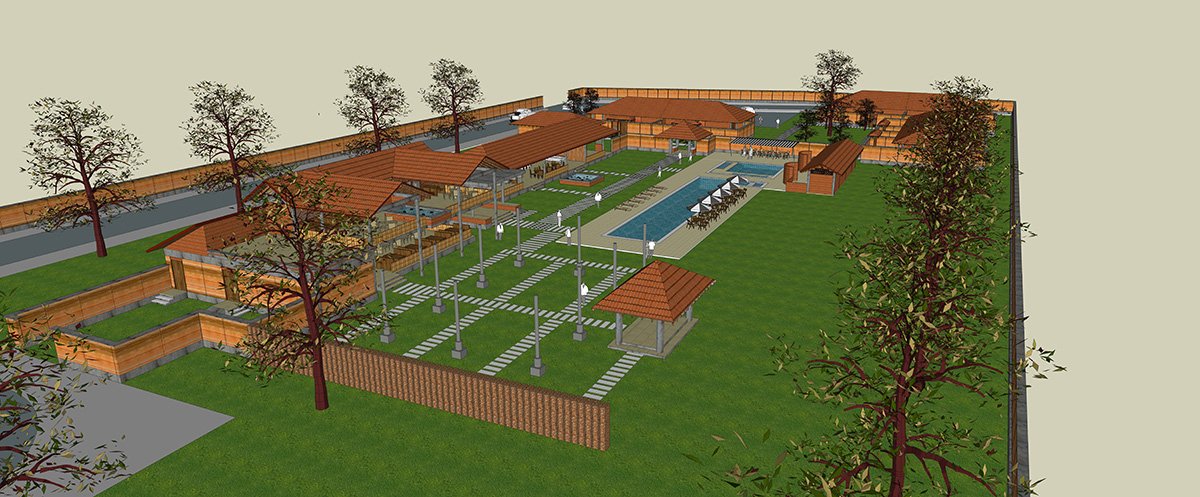

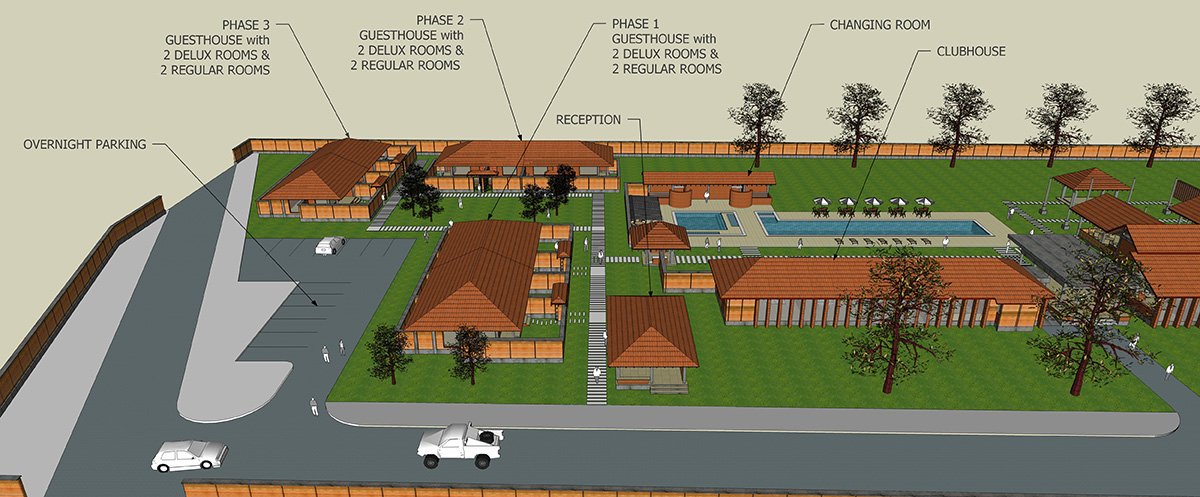

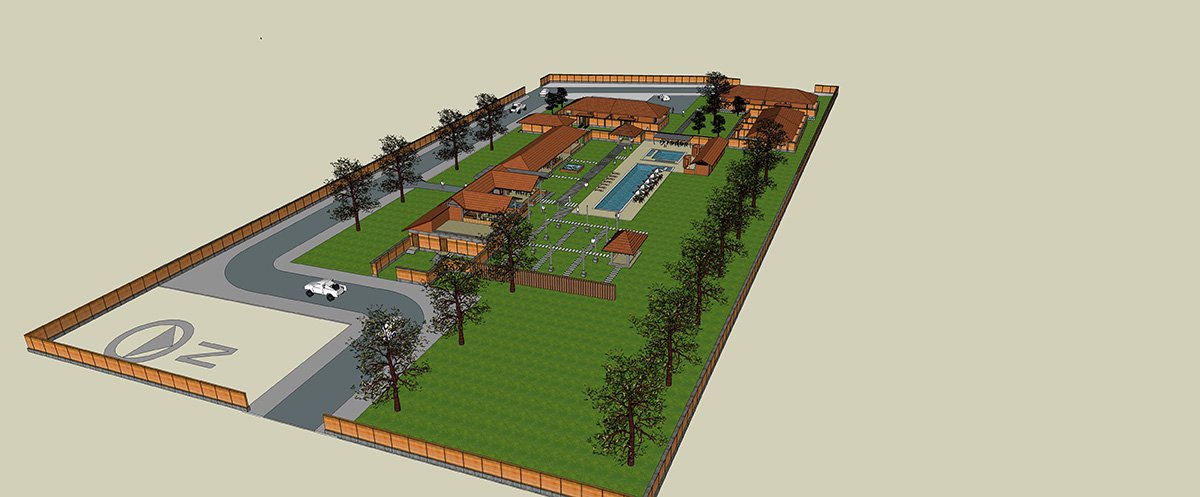

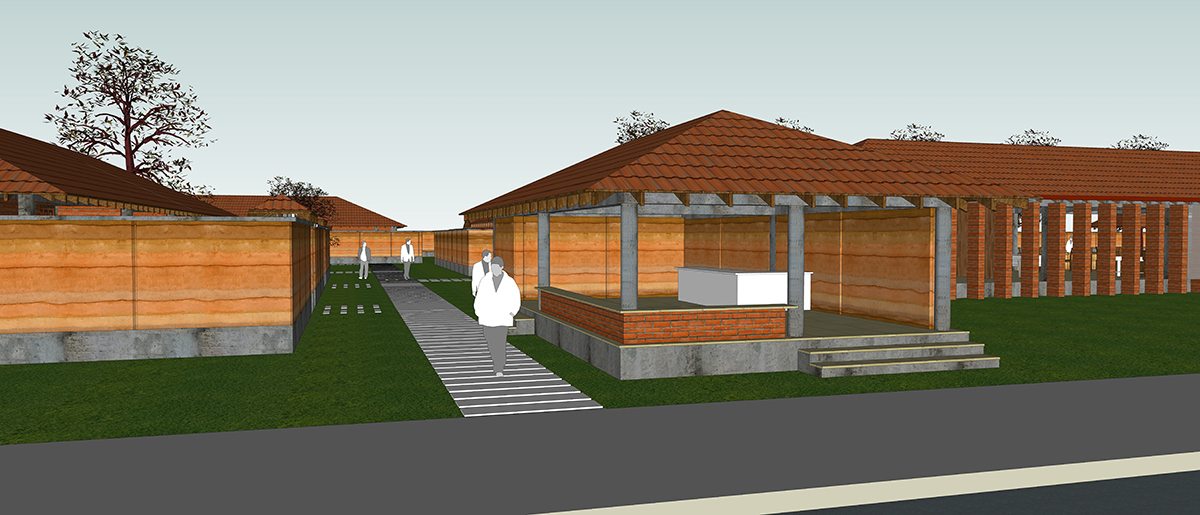

Resort |
Resort membership for all the Site Plot Owners.

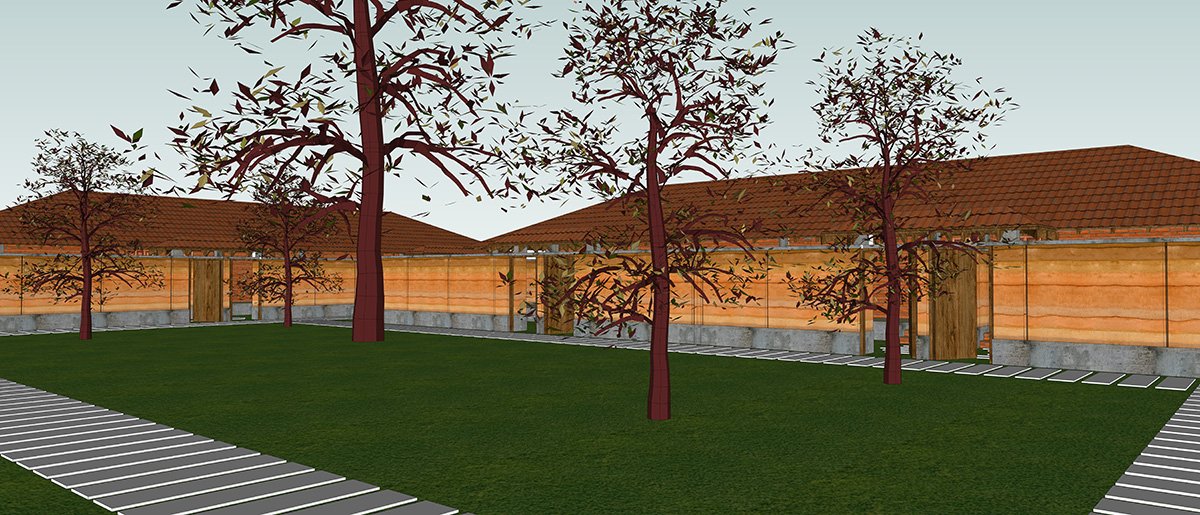

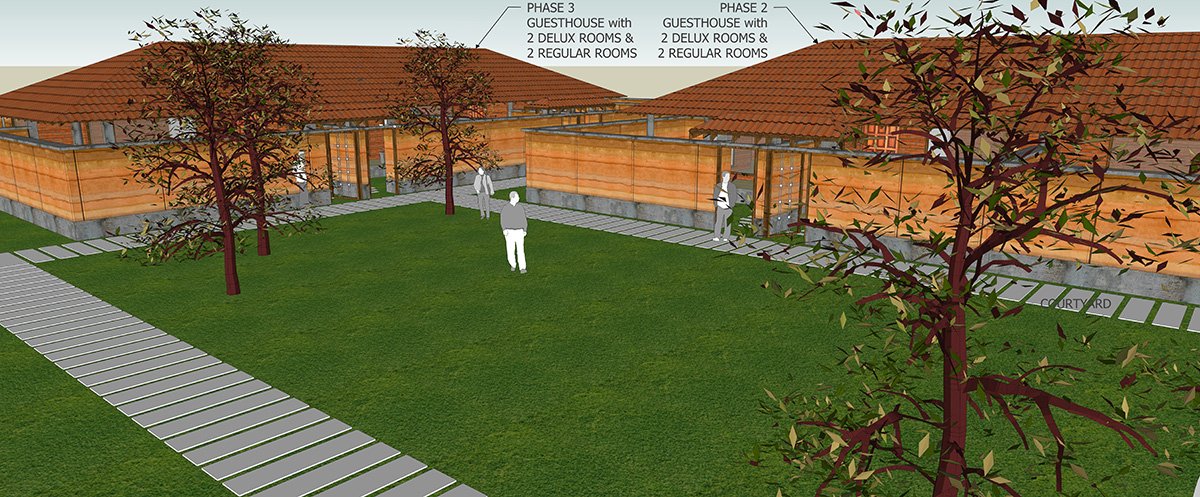

- Resort will have Deluxe and Regular Cottages

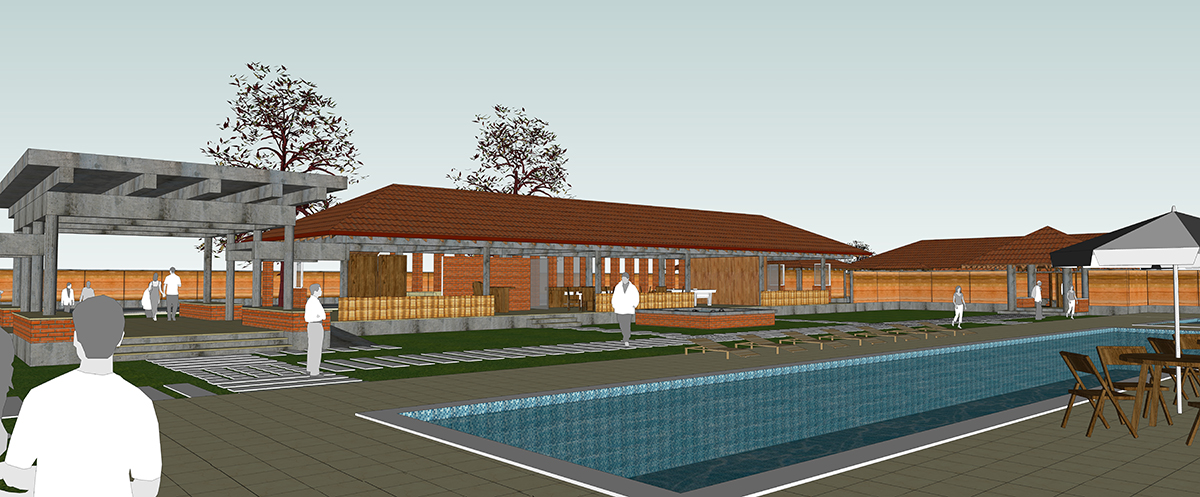

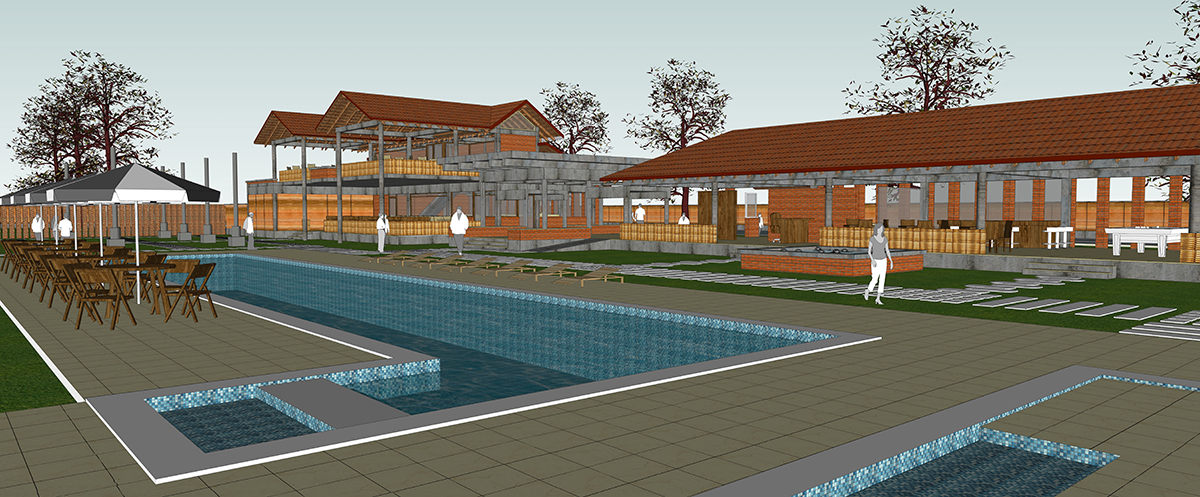

- Swimming Pool 3 or 5 Lane (~ 18 to 20 Mts Length)
- Club House – recreation Games
- Mantap for Events
- Kitchen and Dining Facility
|
4 Acres of Land allocated to the development of Resort. |
| 15 |
Compound Wall |
Entire Perimeter of the Layout will be fenced by 7 Ft high compound wall |
Solid Cement bricks masonry with Mud Plastering and Ridge Tile Coping |
| 16 |

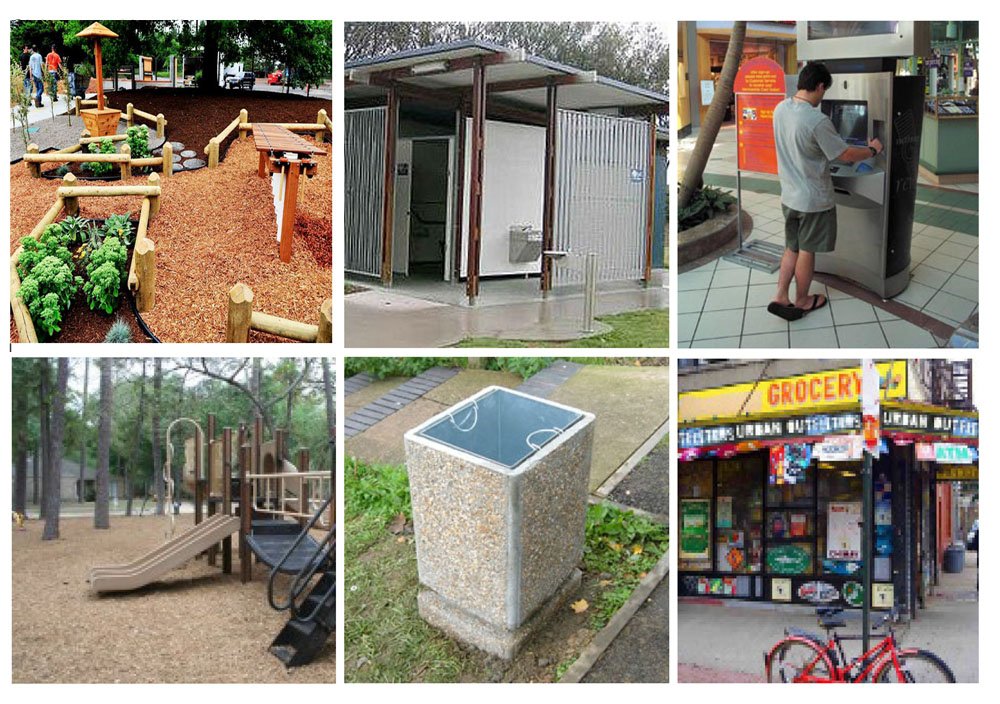

CA Area |
ATM / Pharmacy / Grocery Store Area Demarcation and Build up |
|
| 17 |
Bio Swale |
For Ground water perculation - similar to Storm Water Drains |
Technical Information / Design as per the design provided by Auroville Design Center. |
| 18 |
Project Principle Architect |
Ms.Suhasini Ayer |
From Auroville Design Center |
| 19 |
Project technical Consultant |
SEMAC |
All Technical requirement design by SEMAC to meet Architect expectations. |
| 20 |
Project Management Development |
Charmion Builders and Developers |
|
| 21 |

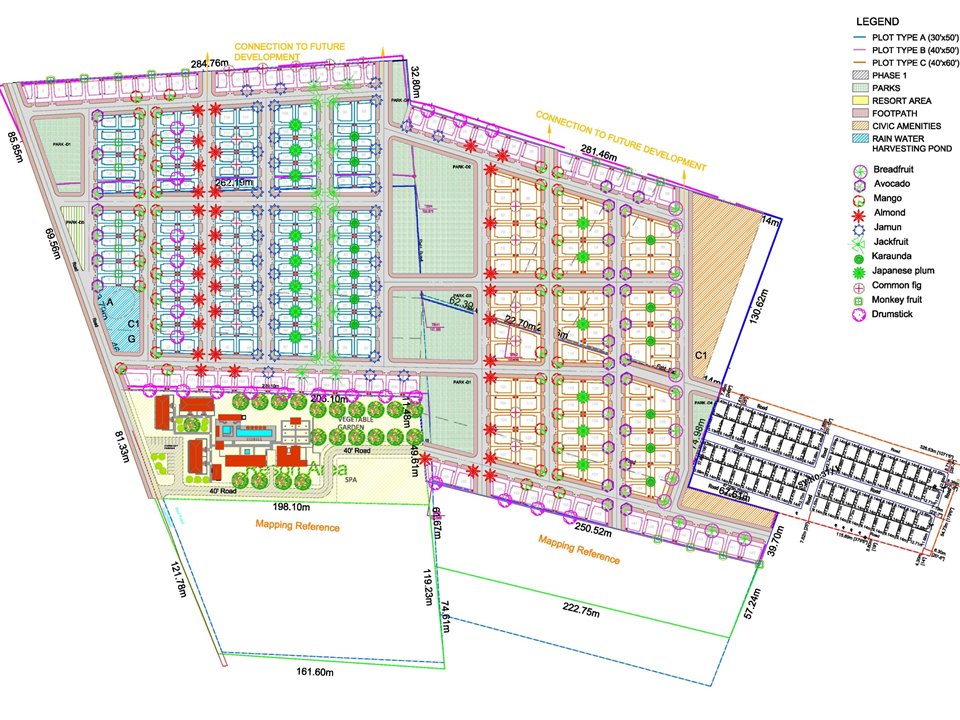

Gardening and Tree Plantation |
Fruit Bearing Trees across the layout, as per recommendation from Auroville Design Center
(~ 400 Trees) |
This activity is supported by Sidalaghatta Horticulture Department.
Refer to design document - "Tree Plantation" |
| 22 |
Rain Water Harvesting |
|
|
| 23 |
Telecom |
Provision for Telecom connection
|
Dependency on Service Provider
|
| 24 |
Facilities avialable within Plot |
Every Plot will be terminated with
- Water connection.
- Conduiting from Electrical Feeder Box to Individual house for Electrical Connection
- Conduiting for Data Connectivity.
- Green / Tree Plantation as per the Design specification
|
- Data connectivity depends of Service Provider availability and Feasibility.
- Plot owner will need to opening electrical connection when planning to construct a house as per guidelines from Electricity board regulation.
- Liaison person with KEB Authorities would be recommended.
|
| 25 |
Sanitary / Sewage Connection |
Individual Plot owners will need to buy and install Sewage Treatment Plants meant for Residential use. specifications will be made available. |
- Similar design would be implemented for Site Office toilets
- Recycled water to be used for Plantation
- Maintenance Support will be arranged.
- Equipment Warranty as per OE specifications.
|
| 26 |

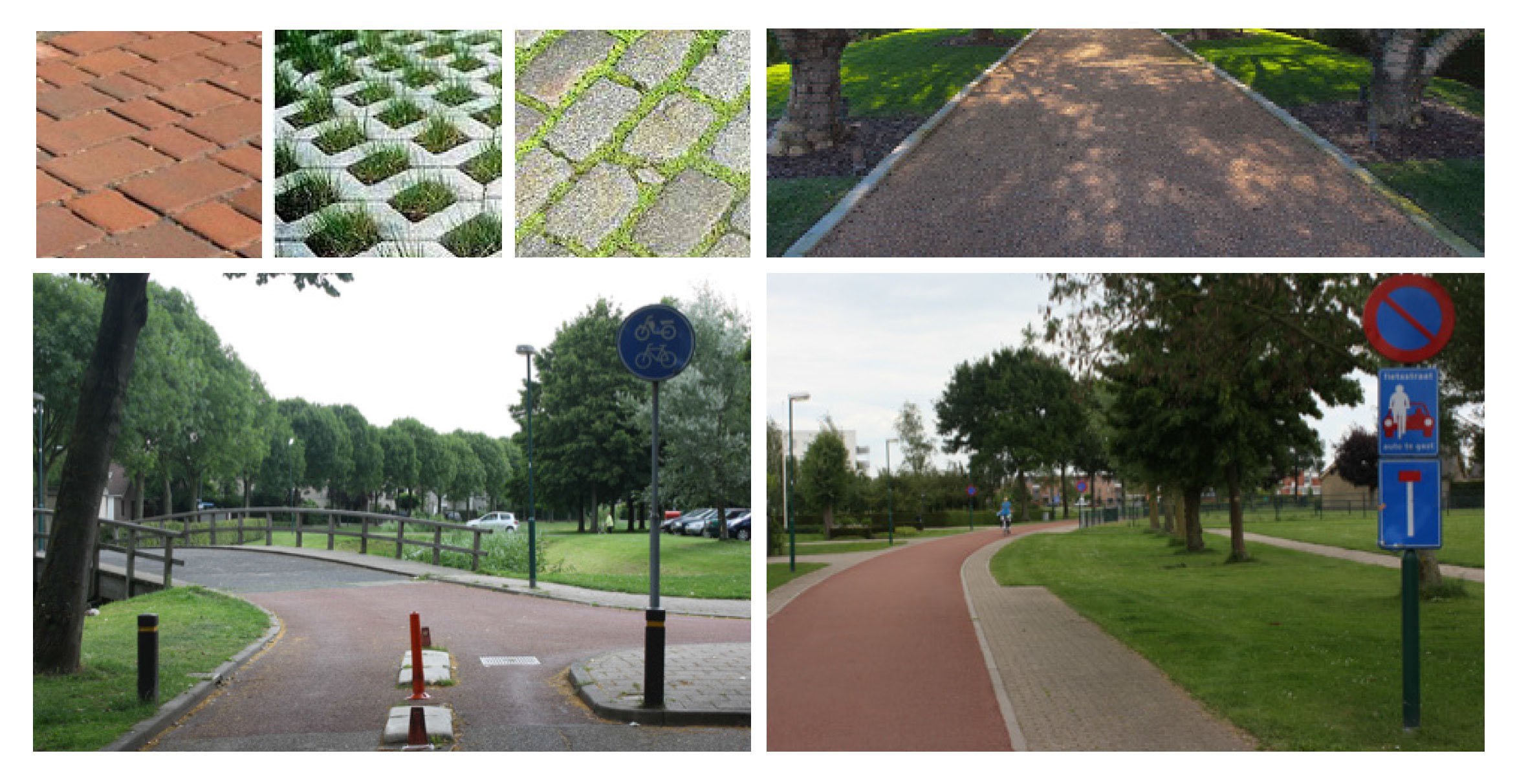

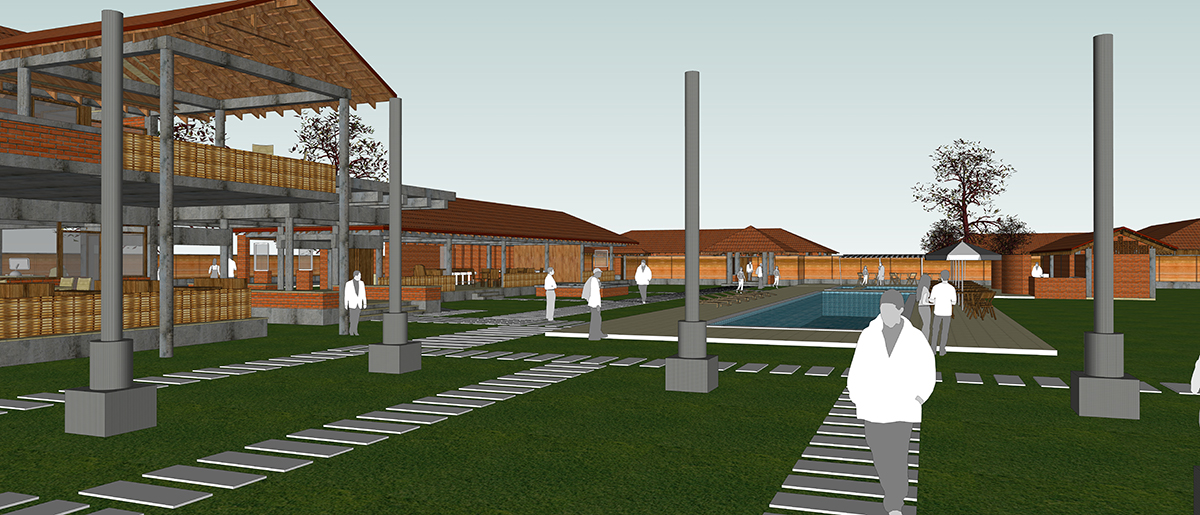

Path Ways |
Pathways will be laid with Sadarhalli or equivalent Granite unpolished Slabs. |
- Mock up can be seen in Project Site.
|
